YX 5300 Serial MP3 Player
\n - Operating voltage 3.2 ~ 5.2VDC \n - High quality \n - Support file format: MP3 / WAV \n - Support Micro SD card, Micro SDHC Card \n - 30 class adjustable volume \n
SKU: OL-137 · GST inclusive (18%) · Free shipping over ₹1500
✓ Lab-tested before dispatch
✓ Free code, tutorials & documentation
✓ Support from real makers
Description

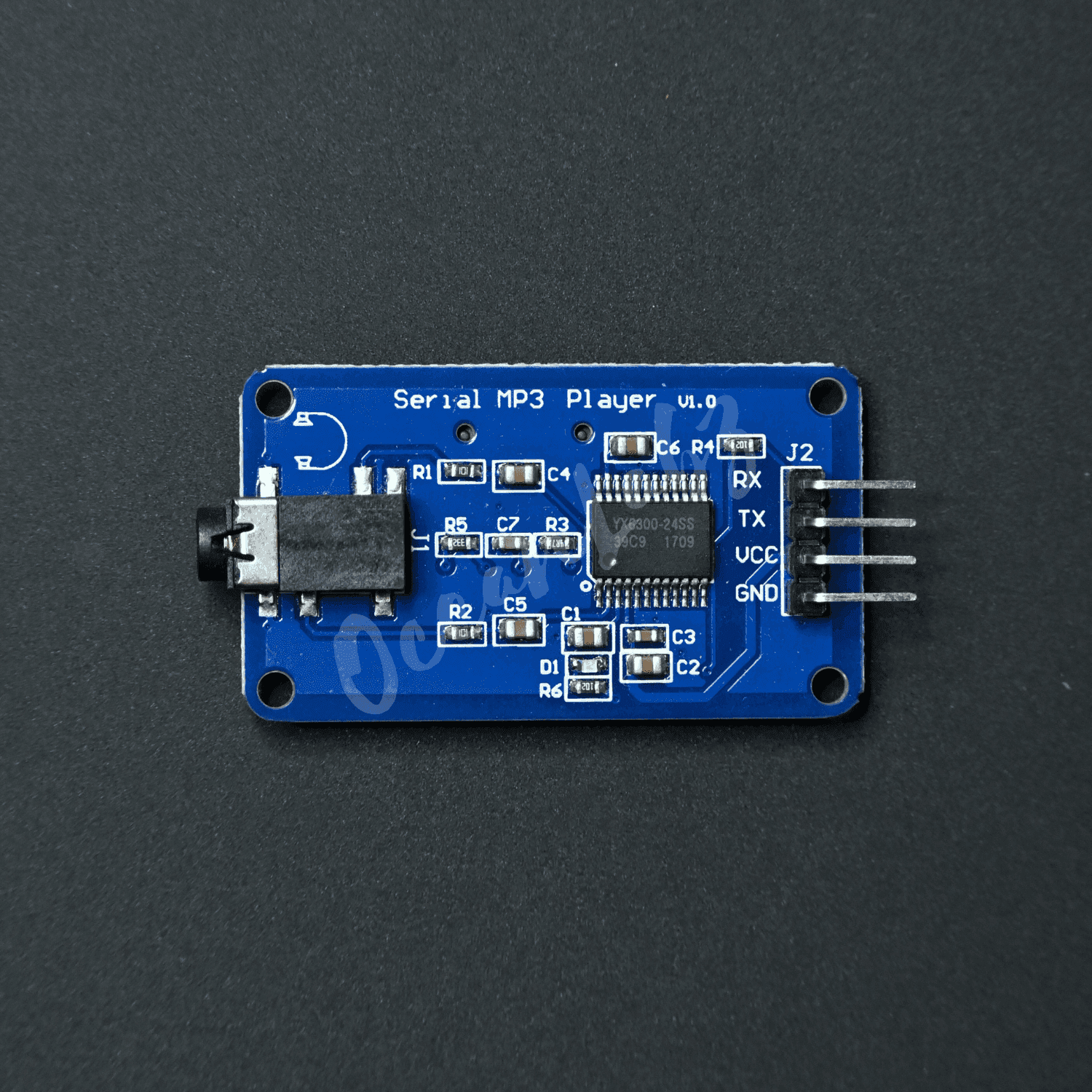

The module is a kind of simple MP3 player device which is based on a high-quality MP3 audiochip---YX5300. It can support 8k Hz ~ 48k Hz sampling frequency MP3 and WAVfile formats.

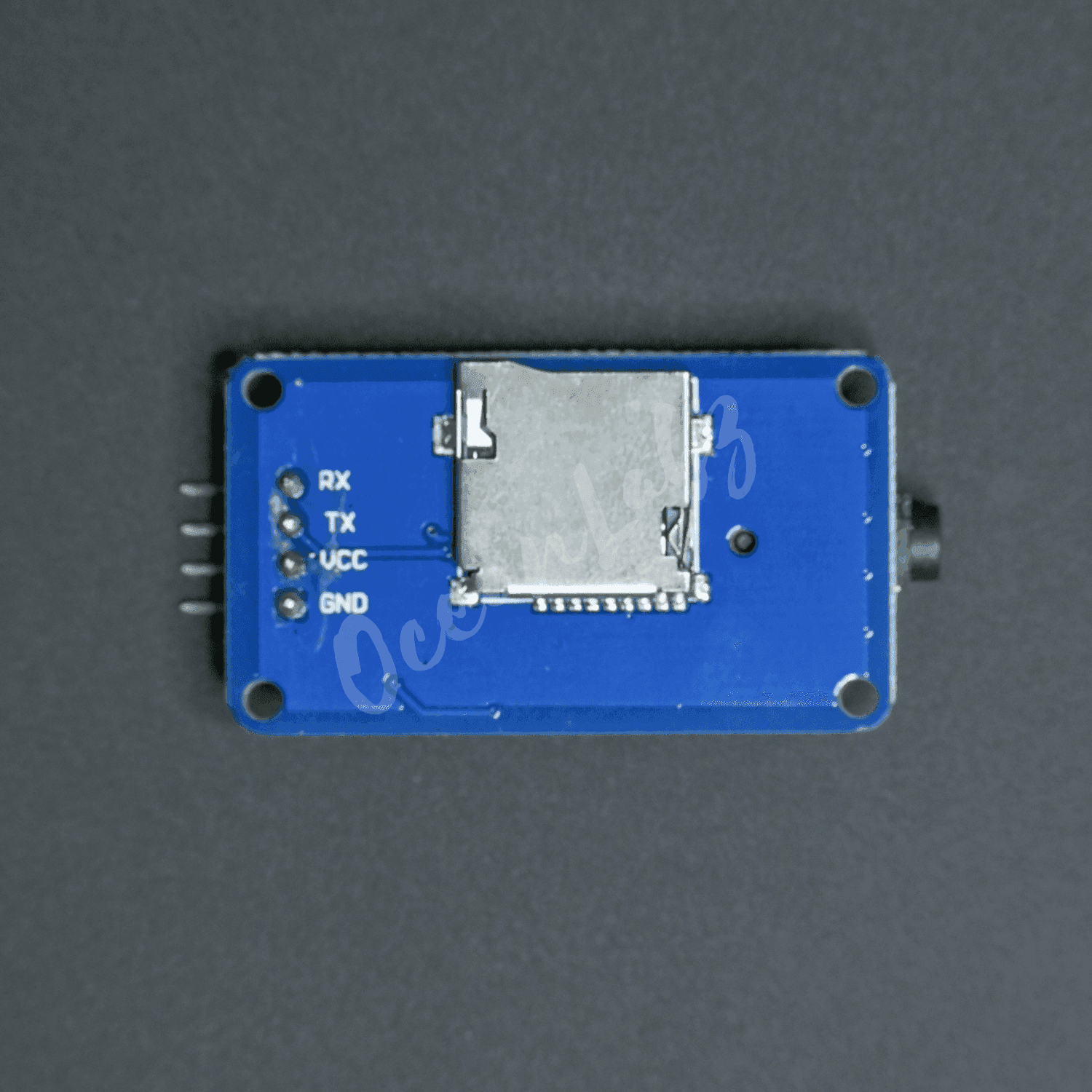

There is a TF card socket on board, so you can plug the micro SD card that stores audio files. MCU can control the MP3 playback state by sending commands to the module via UART port, suchas
switch songs, change the volume and play mode and so on. You can also debug the module via USB to UART module. It is compatible with Arduino / AVR / ARM / PIC.
SPECIFICATIONS
Support sampling frequency (kHz): 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48
High quality
Support file format: MP3 / WAV
Support Micro SD card, Micro SDHC Card
30 class adjustable volume
UART TTL serial control playback mode, baud rate is 9600bps
Power supply can be 3.2 ~ 5.2VDC
Control logic interface can be 3.3V / 5V TTL
Compatible with Arduino UNO, Raspberry PI
Specifications
