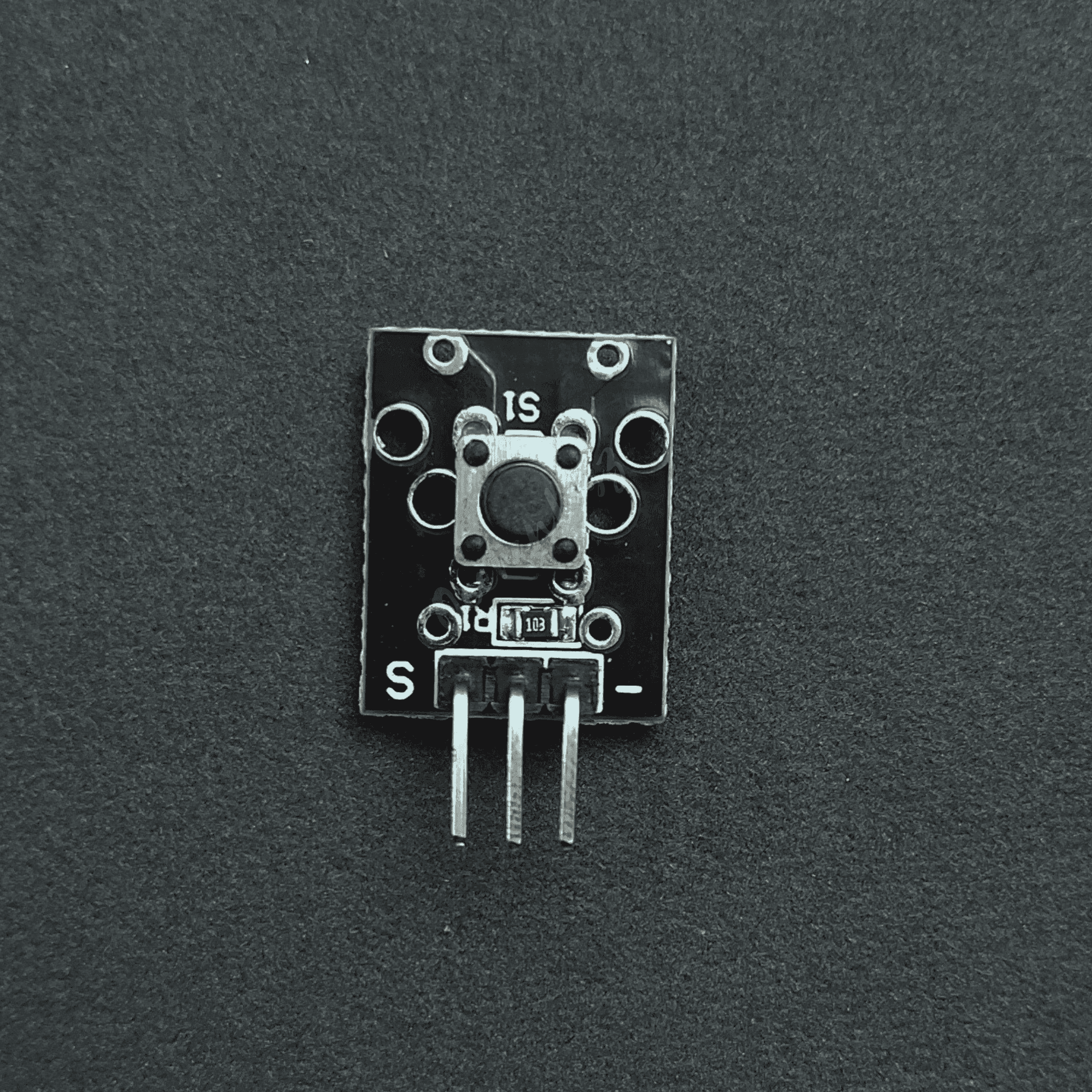

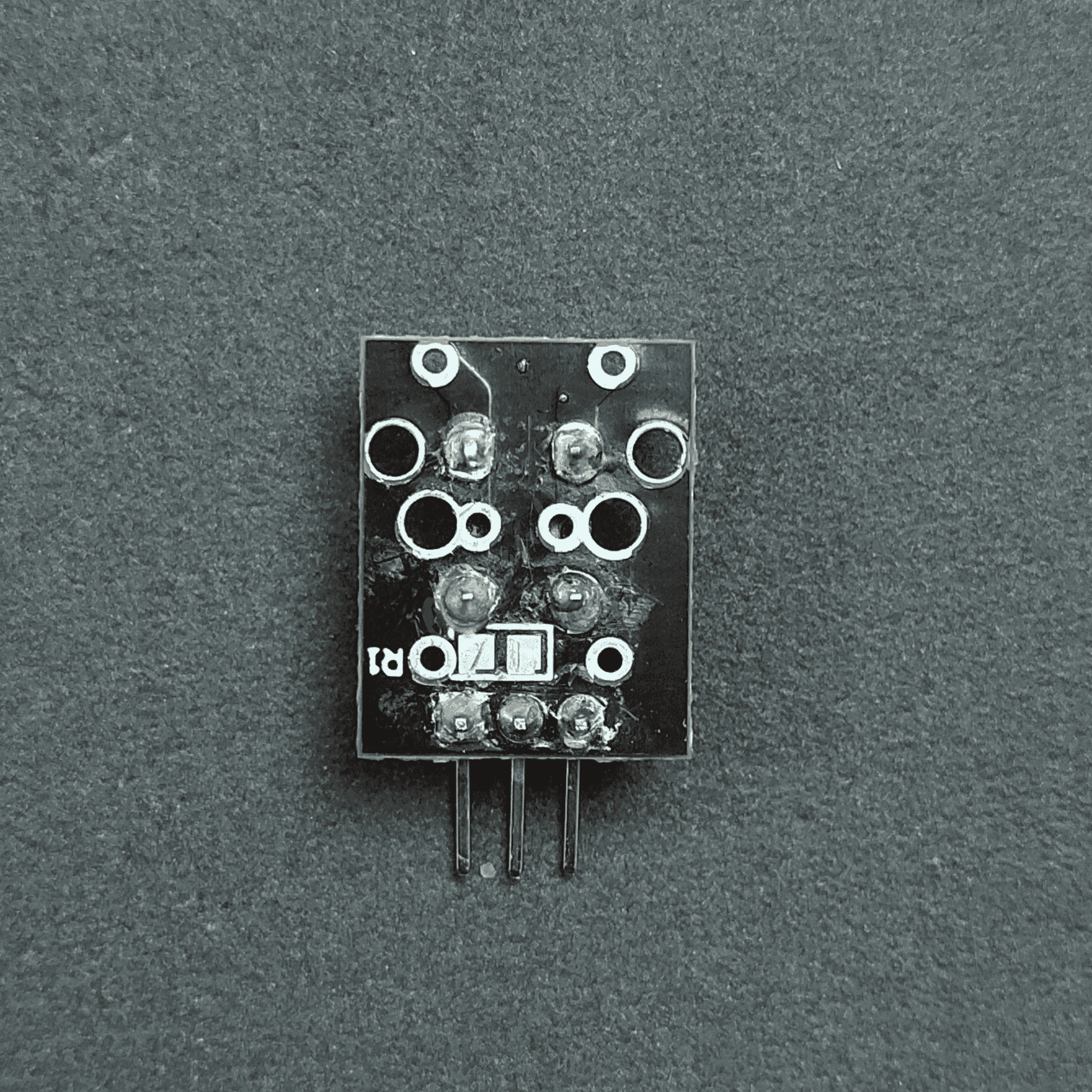

Momentary Tactile Push Button Module
\n - Operating Voltage: 5V \n - Contact Resistance : 50mΩ max (initial) \n - Electrically Life:100,000 cycles \n - Environment temperature: -25°C to +105°C \n - Operating Force: 180/230(±20gf) \n - Seal temperature:250ºC-280ºC \n - I/O pins: 3 pins \n
SKU: OL-162 · GST inclusive · Free shipping over ₹1500
✓ Lab-tested before dispatch
✓ Free code, tutorials & documentation
✓ Support from real makers
Description
This Momentary Tactile Push Button Module is ideal for integrating a button into your projects, providing a high signal when pressed.The push button module is a complete device ready for immediate installation in your project, eliminating the need for external pull-up or series resistors, as they are already integrated into the circuit. The button and resistor are mounted on the board with dedicated installation holes. The built-in resistor has a rating of 10 kΩ.This module features two contacts that close when pressed and open when released. It includes 3 outputs on the board: I, S, + 5V. The I contact connects to the common wire of the circuit, S serves as the module's output, and + 5V connects to the power supply.
Specifications
| Tax | taxable |
