Micro SD Card Adapter Module
\n - Input Voltage: 3.3V/5V \n - On-board 3.3V voltage regulator circuit \n - Current: 0.2~200mA \n - Supports Micro SD up to 2GB \n - Micro SDHC up to 32GB \n
SKU: OLM1025 · GST inclusive (18%) · Free shipping over ₹1500
✓ Lab-tested before dispatch
✓ Free code, tutorials & documentation
✓ Support from real makers
Description
SD cards are often used along with microcontrollers to store and retrieve the huge amount of data, mostly in data logging or visualization applications . This SD card module will help us to easily Interface an SD card with Microcontrollers.
The micro SD card module operates on 4.5V to 5.5V and uses an on-board regulator to regulate 3.3V. The communication between the SD card and Microcontroller takes place through the SPI standard Communication Protocol.

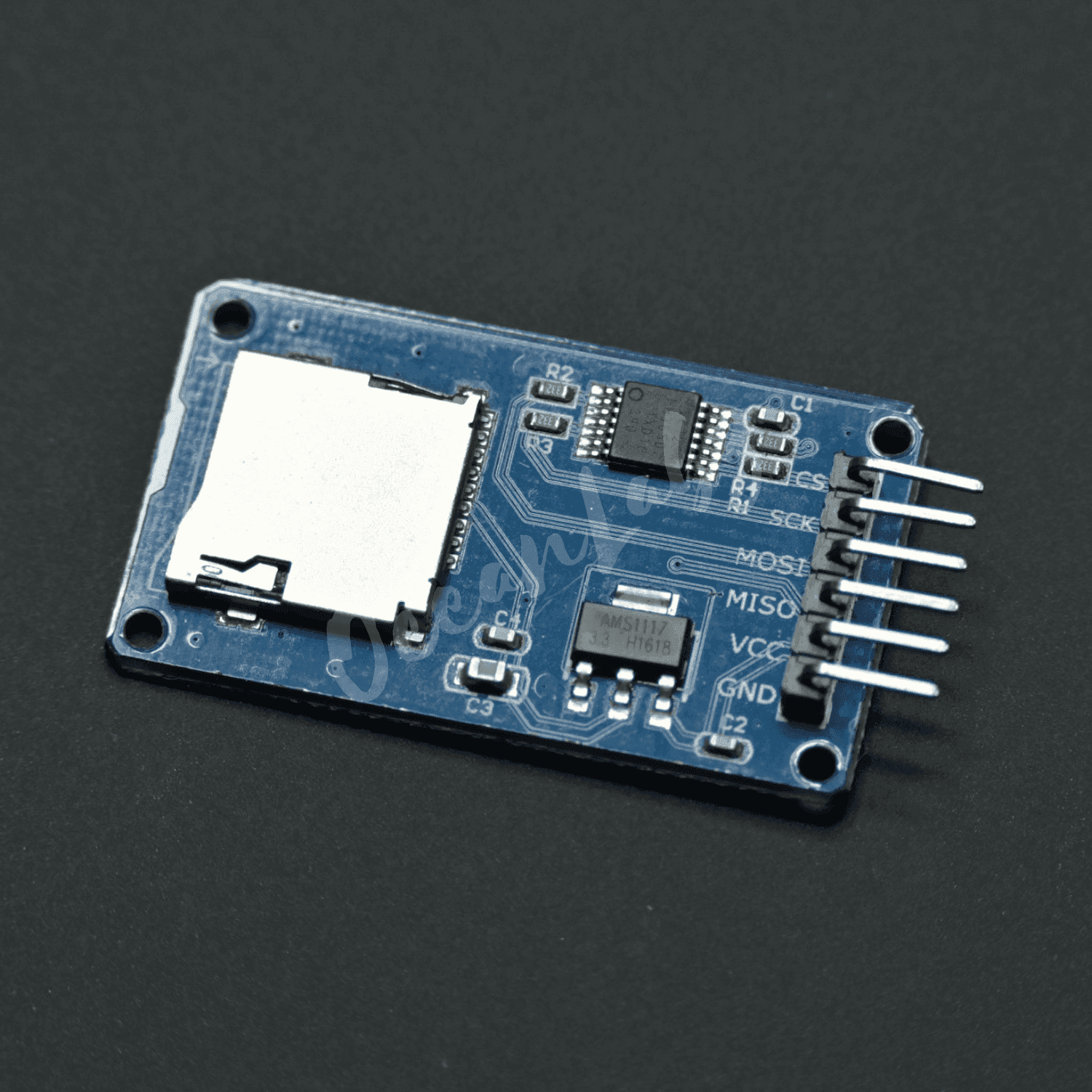

The micro SD card module contains two main components i.e. Voltage Regulator and Level Shifter. The on-board ultra-low dropout regulator is used to convert 5V to 3.3V and Level Shifter is used to converts the interface logic from 3.3V-5V to 3.3V.
FEATURES & SPECIFICATIONS
Input Voltage: 3.3V/5V
On-board 3.3V voltage regulator circuit
Current: 0.2~200mA
Supports Micro SD up to 2GB
Micro SDHC up to 32GB

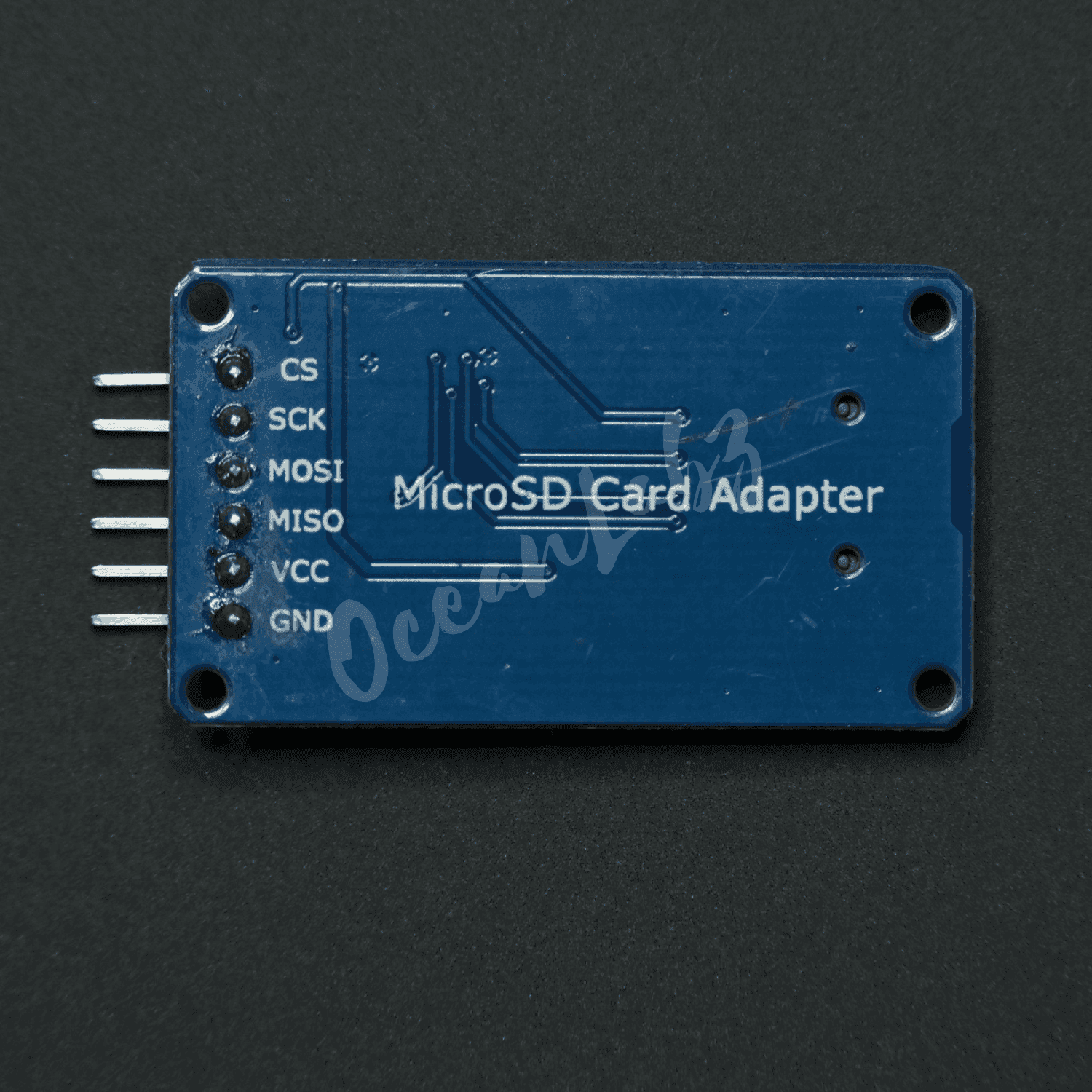

Pinouts: GND, VCC, MISO, MOSI, SCK, CS; SPI standard interface
4 mounting holes with 2.2mm diameter
Only use 4 I/O pins on the Arduino
Size: 42mm x 25mm x 5mm
