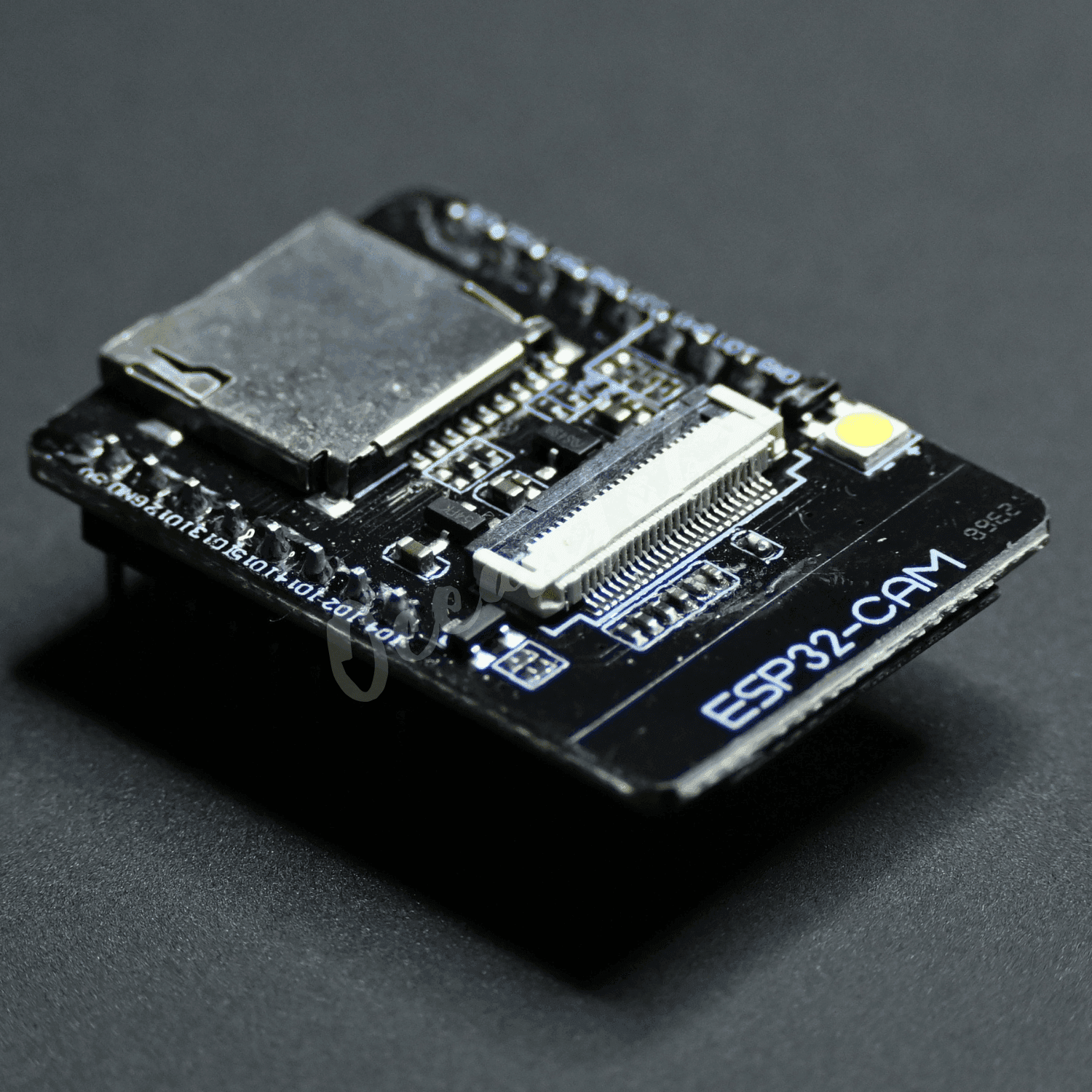

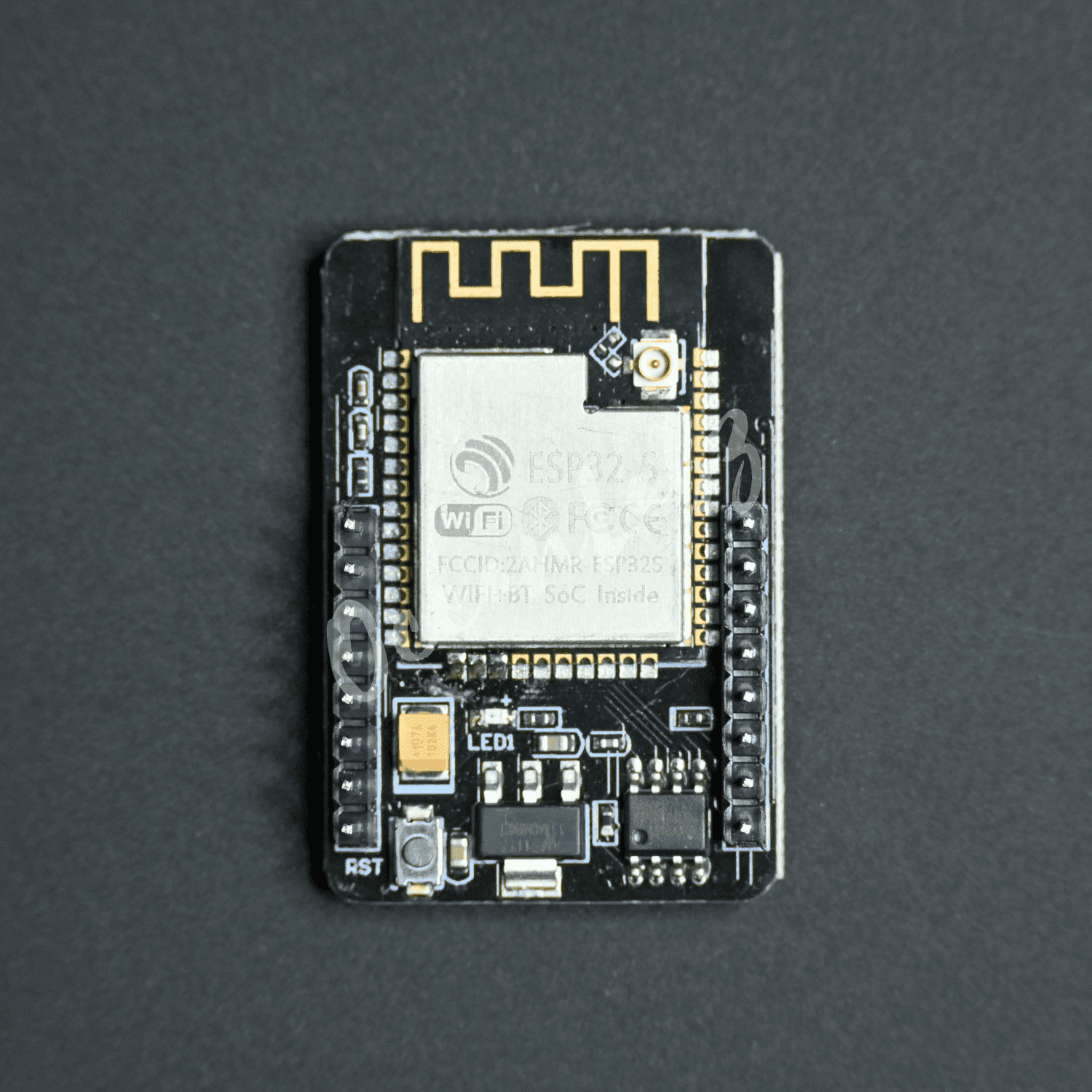

ESP32 CAM Development Board WiFi+Bluetooth with OV2640 Camera Module Fully Tested
\n - SPI Flash: default 32Mbit \n - RAM: built-in 520 KB+external 4MPSRAM \n - Dimension: 27*40.5*4.5（±0.2）mm/1.06*1.59*0.18” \n - Bluetooth: Bluetooth 4.2 BR/EDR and BLE standards \n - Wi-Fi: 802.11b/g/n/e/i \n - Support Interface: UART, SPI, I2C, PWM \n - Support TF card: maximum support 4G \n - IO port: 9 \n - Serial Port Baud-rate: Default 115200 bps \n
SKU: OL-113 · GST inclusive · Free shipping over ₹1500
✓ Lab-tested before dispatch
✓ Free code, tutorials & documentation
✓ Support from real makers
Description
The ESP32-CAM has a very competitive small-size camera module that can operate independently as a minimum system. \n \nESP32-CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications. \n \nESP32-CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT hardware terminals. \n \n \n \nFEATURES \n \n - Up to 160MHz clock speed，Summary computing power up to 600 DMIPS
\n - Built-in 520 KB SRAM, external 4MPSRAM
\n - Supports UART/SPI/I2C/PWM/ADC/DAC
\n - Support OV2640 and OV7670 cameras, Built-in Flash lamp.
\n - Support image WiFI upload
\n - Support TF card
\n - Supports multiple sleep modes.
\n - Embedded Lwip and FreeRTOS
\n - Supports STA/AP/STA+AP operation mode
\n - Support Smart Config/AirKiss technology
\n - Support for serial port local and remote firmware upgrades (FOTA)
\n
Specifications
