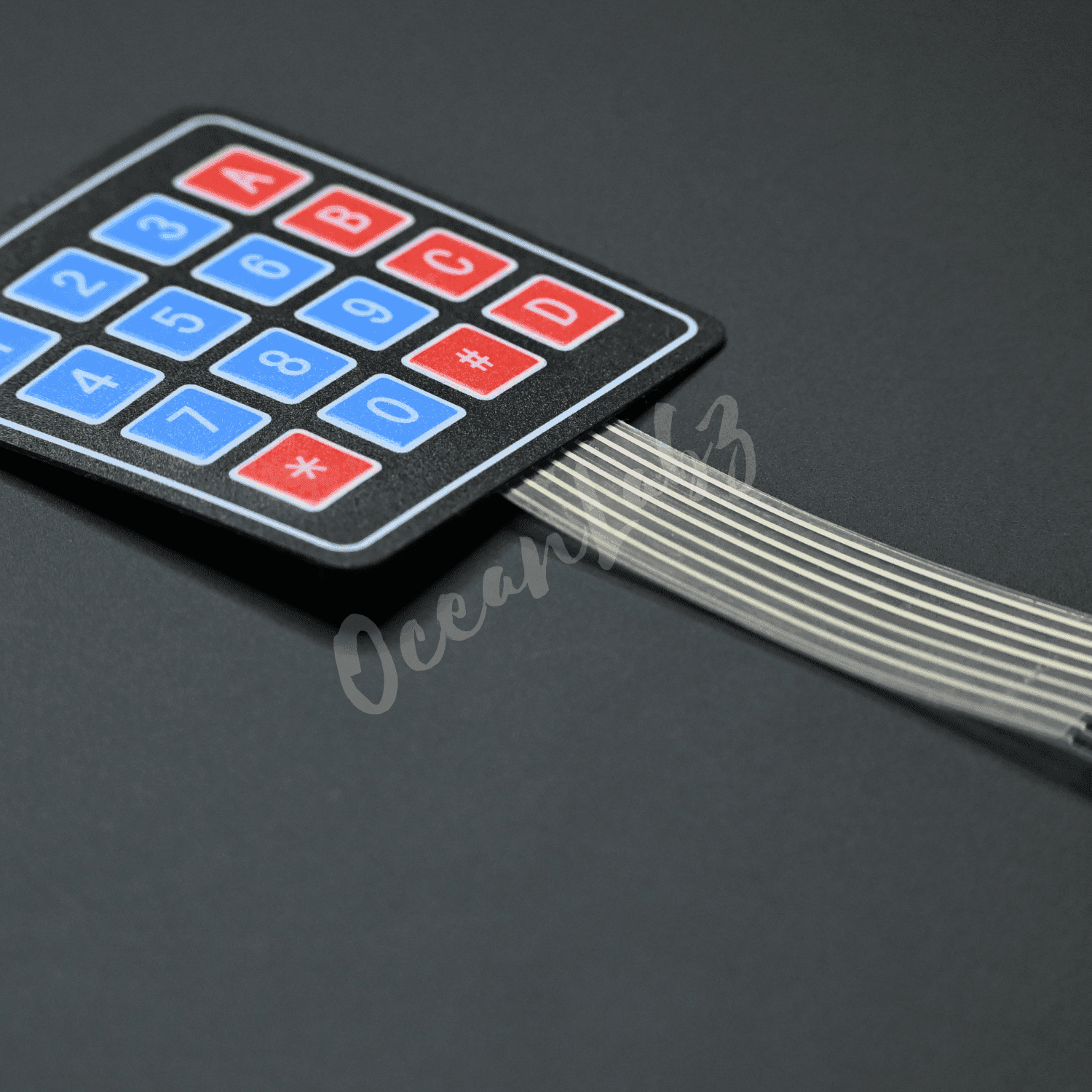

4x4 Membrane keypad
\n - Operating Voltage (V): 5 DC \n - Easy communication with any microcontroller \n - Ultra-thin design & adhesive backing provides easy integration to any project \n - Sticker can peel off for adhesive mounting. \n
SKU: OLM1036 · GST inclusive (18%) · Free shipping over ₹1500
✓ Lab-tested before dispatch
✓ Free code, tutorials & documentation
✓ Support from real makers
Description
This 4x4 keypad module has a total 16 different keys and comes in 4x4 matrix. The keypad comes in stripped form connectors which can directly be attached to the respective microcontroller development board.
FEATURES & SPECIFICATIONS
4 x 4 Matrix Membrane Keypad

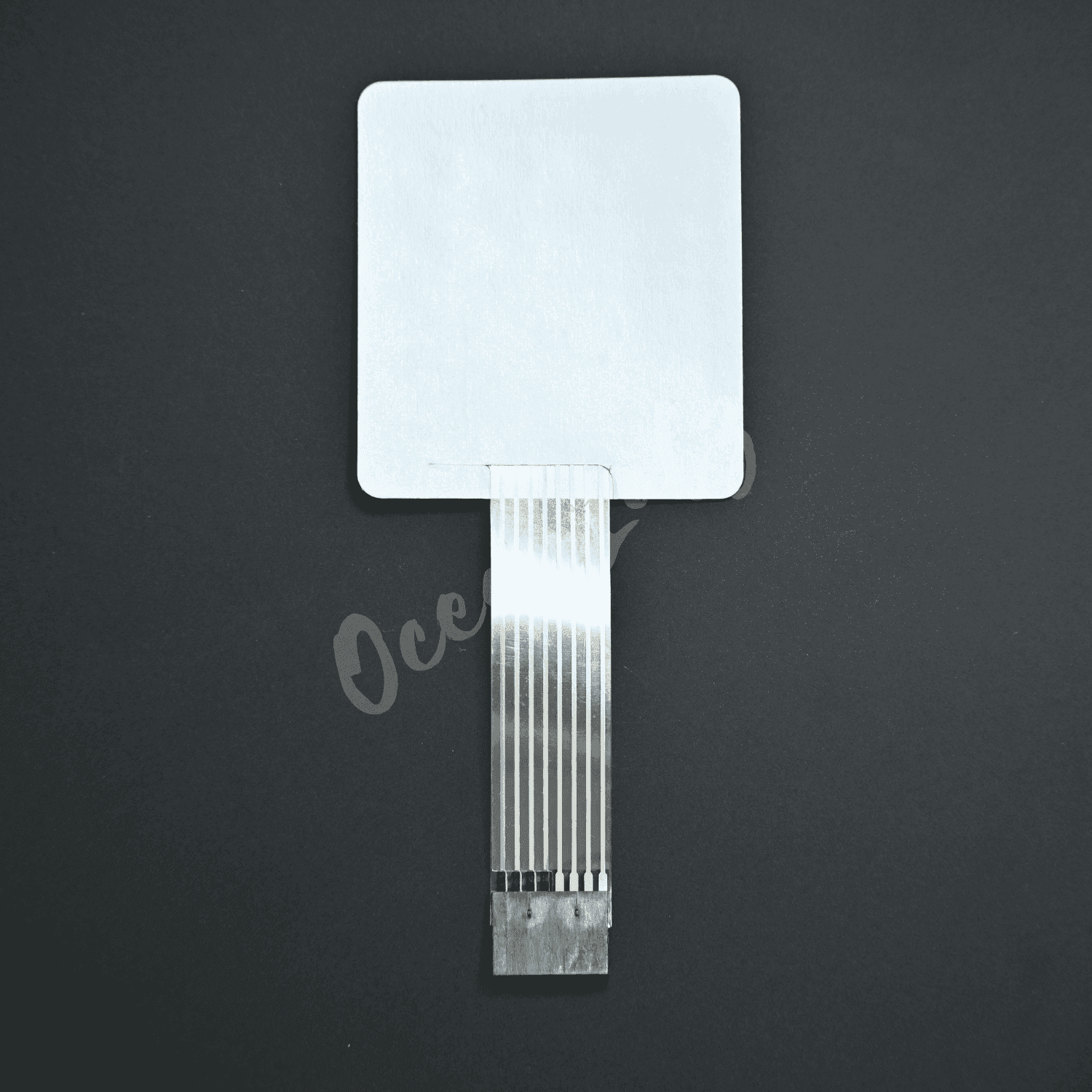

Adhesive mounting (sticker on the back side)
8 pin connector
Operation Temperature: 0 to +60 centigrade
Flexible Circuit Length: Approx. 3.3 inch / 83 mm
Humidity: 40 centigrade, 90%-95%, 240 hours
APPLICATIONS
Hobby Projects
Security systems
Measurement Instruments
Vending machines
Industrial machines
Data entry for Embedded Systems
Specifications
| Tax | taxable |
